Description

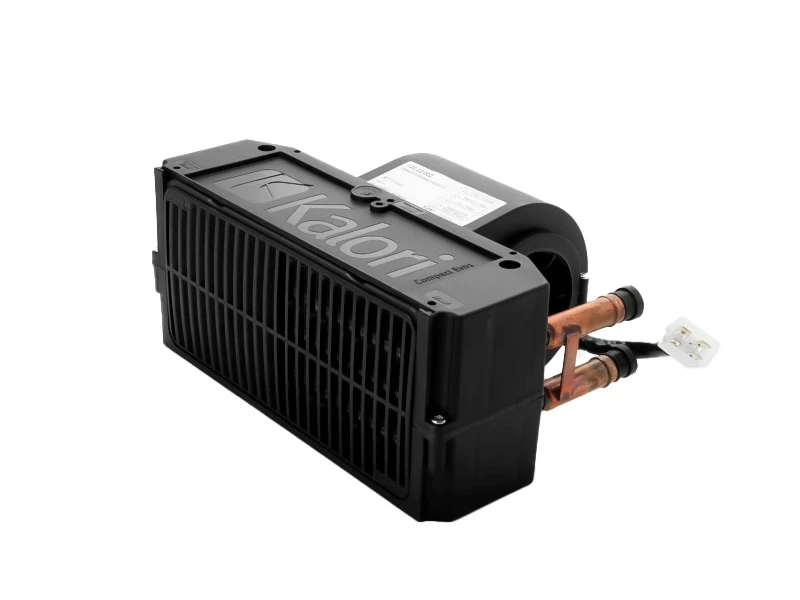

Compact EVO1 G 24V cell heater with front space, heating capacity 4,3 kW
The heater is connected to the engine cooling water system.
The heater has a quiet 3-speed fan. Circuit breaker not included, must be ordered separately.
The quiet Kalori water circulating instantaneous water heater is suitable for fixed installation. The heater has a Ø75 mm hole on one side of the blower motor for attachment of the intake air inlet hose, if required.
Calori code 120.32.002
The three-speed blower requires a four-position switch; 0-1-2-3.
- Heating capacity 4,3 kW
- Air flow 230 m³/h
- Operating voltage 12 V
- Electricity consumption 70 W
- Sound level 63 dB
- Weight 2,2 kg
- Hose connections Ø 16 mm
- 2-speed fan

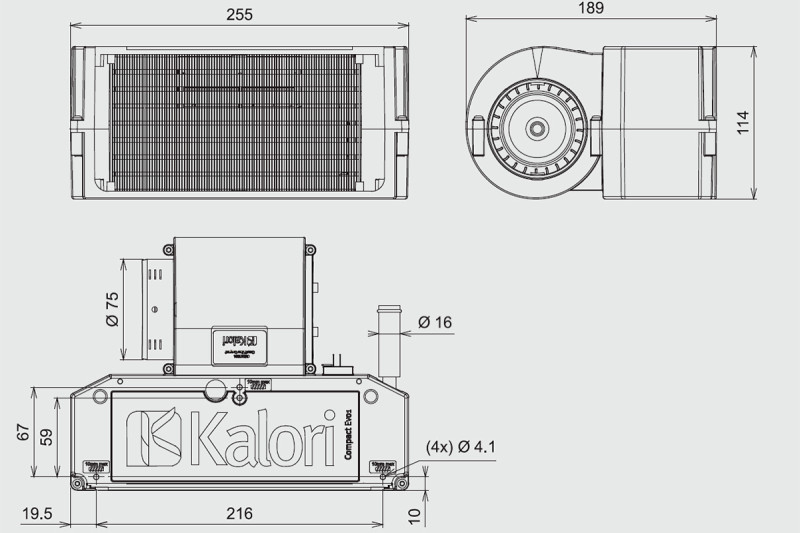

Width 255 mm
Depth 114 mm
